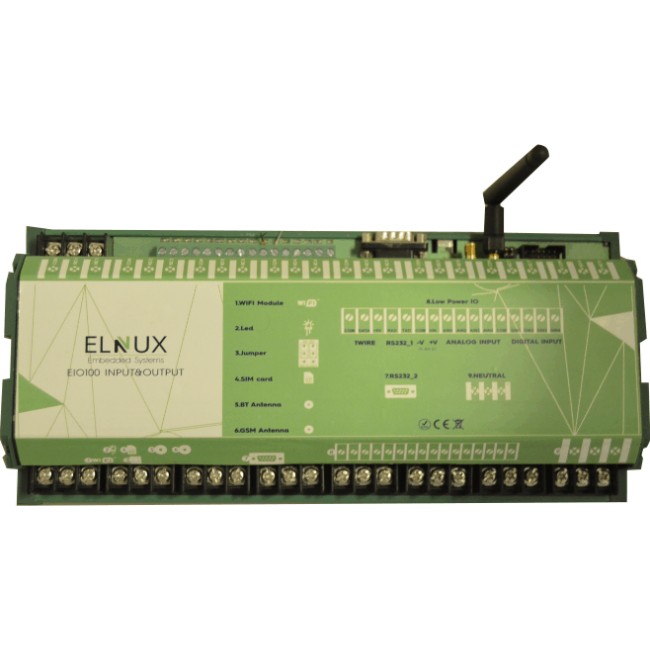

Elnux Input Output (EIO100) is an extension I/O board which helps EMC100 to interface embedded level peripheral into common industrial interfaces like RS232, RS485, Relays, Digital inputs, 1-wire, current and voltage sense.
Hardware:
- 8x Relay (30A, 277VAC)
- 8x Current sense (30A)
- 8x Voltage sense (277 VAC)
- 4x DIN (4V to 40V)
- 4x AIN (0V to 40V)
- 1x 1-Wire
- 2x RS232/RS485, DB9 connector (CMOS, hardware flow control)
- Power (+12V, 2A)
Software:
- None
Mechanical:
- 40 Pin screw terminal (16 left, 16 right, 8 front)
- 160×180 mm
Optional:
- None
