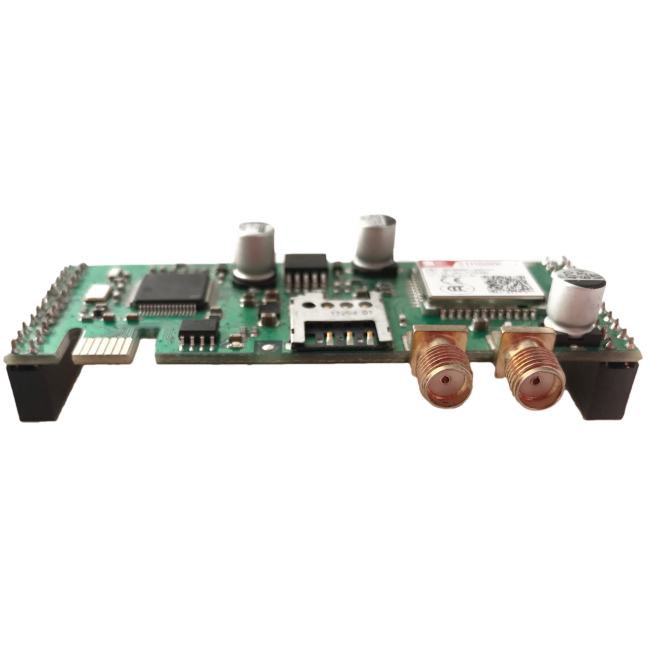

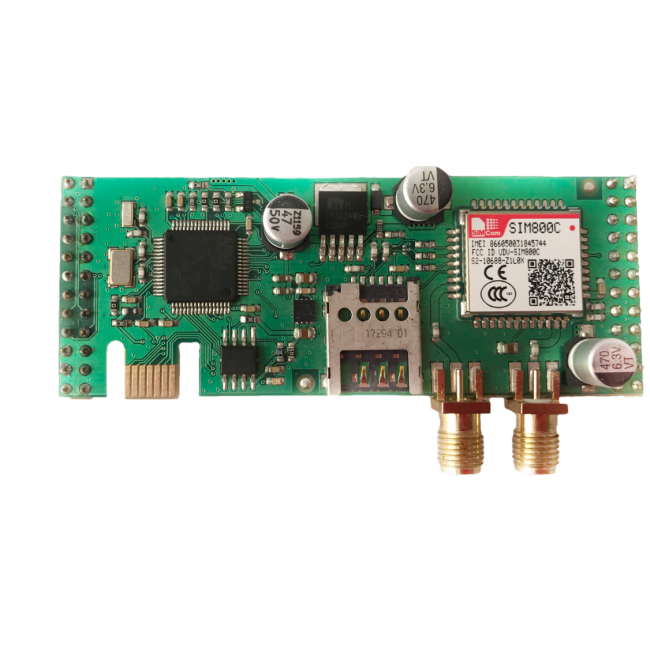

Elnux Modem Control (EMC100) is a simple transparency mode device which connects serial port, Bluetooth data and its I/O into your server over TCP/IP or UDP data protocols. This means any data available at serial port, Bluetooth and I/O will be send to your server over GSM/GPRS networks and vice versa.
Elnux Modem Control (EMC100) is a simple transparency mode device which connects serial port, Bluetooth data and its I/O into your server over TCP/IP or UDP data protocols. This means any data available at serial port, Bluetooth and I/O will be send to your server over GSM/GPRS networks and vice versa.
Hardware:
- 2x Serial port (TTL, with hardware flow control)
- 1x I2C
- 1x SPI
- 25x I/O
- 4x ADC
- GSM/GPRS module, Qaud-band: GSM 850, EGSM 900, DCS 1800, PCS 1900
- External and/or Internal GSM antenna
- One SIM card
- 1 LED status indication
- 4 Mb Flash
- Bluetooth (compliant with 3.0+EDR)
- Internal Bluetooth antenna
- Power input (+5V)
- Power output (+3.3V, 1A)
Software:
- Transparent (direct) link between server, I/O, serial port and Bluetooth
- SMS (text mode) I/O control and monitoring
- Serial Port, Bluetooth, GPRS special commands for I/O control, monitoring and records
- Device configuration over GPRS, SMS, Serial port and Bluetooth
- GSM jamming detection
- GSM/GPRS recovery algorithm for unstable networks.
- Watchdog
Mechanical:
- 48 pins header connector (24×2 left and right)
- 50×70 mm
