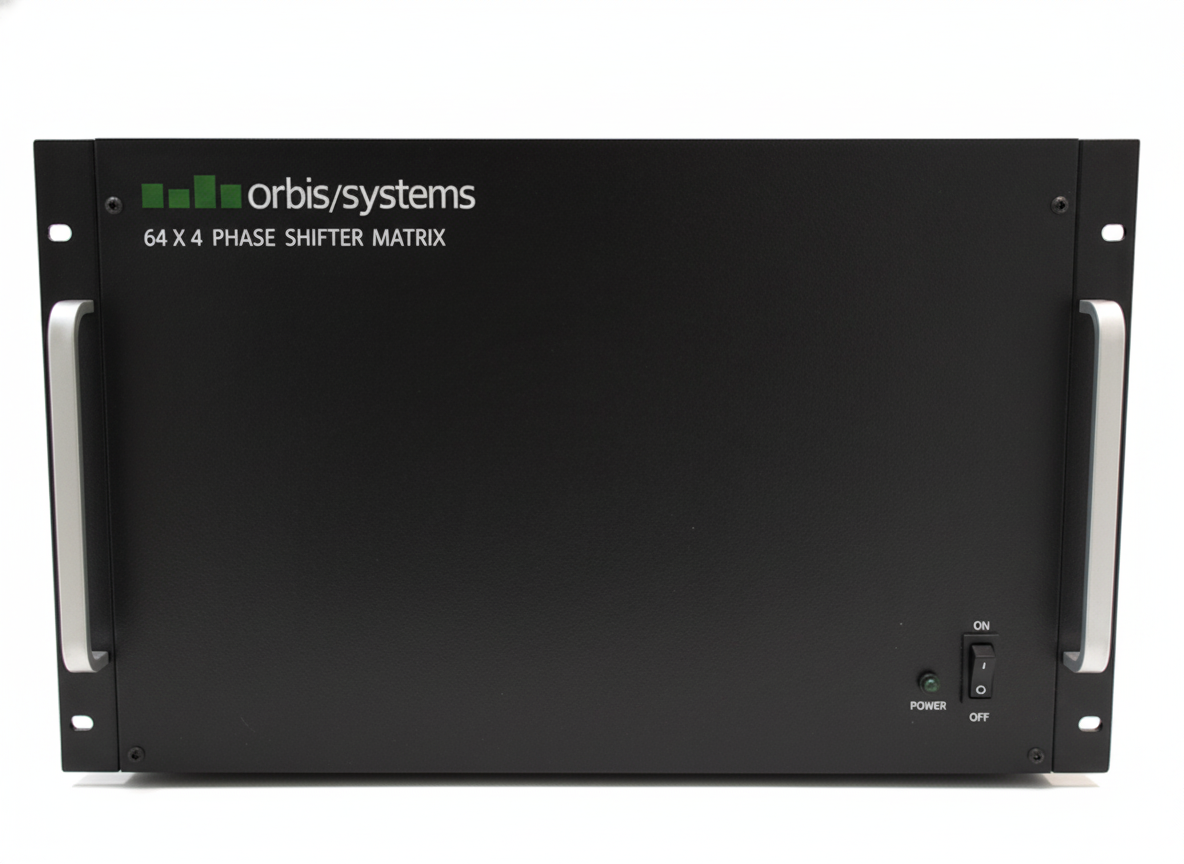

A phase shift matrix module enables independent, per-channel phase control for RF signals. These systems provide deterministic and repeatable phase adjustments, making them essential for beamforming emulation, antenna validation, and multi-channel RF testing.
A phase shift module is essentially a microwave network component that introduces a controllable phase rotation to an RF waveform, enabling precise signal manipulation and timing alignment.
Typical RF phase shifter module designs offer per-channel phase adjustment, which can be either continuous or discrete (stepped). Engineers often combine phase, attenuation, and signal routing control to emulate realistic spatial propagation conditions in a controlled lab setup.
These matrices support remote programming and automation via standard interfaces (e.g., LAN, GPIB, or USB), allowing for repeatable calibration, automated regression testing, and integration into complex RF test systems.
High phase stability, low insertion loss, and fine phase resolution are key performance parameters — ensuring accurate beam steering, MIMO correlation testing, and antenna pattern synthesis.
When integrated with RF signal switching and phase control hardware, the matrix becomes part of a fully automated testbed for MIMO, OTA, and beamforming validation.
