AVO 1KVA Online UPS

1. Type:

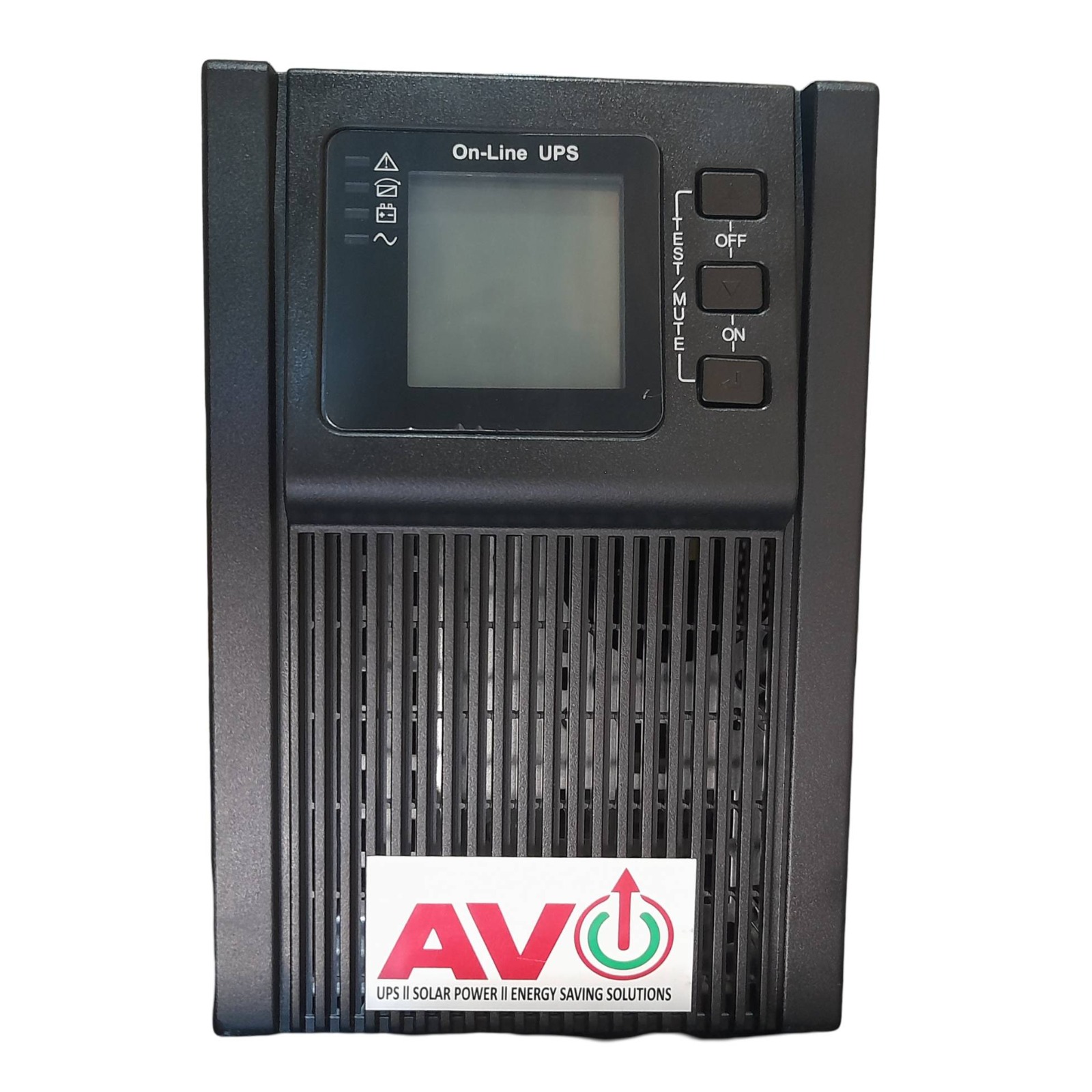

The display clearly shows "On-Line UPS", which means it's a double-conversion UPS. This
type offers the highest level of protection by constantly converting incoming AC to DC and
back to AC, providing clean and uninterrupted power.

2. Branding:
At the bottom, there’s a logo with "AV" and the tagline:
"UPS || SOLAR POWER || ENERGY SAVING SOLUTIONS"
This suggests the manufacturer or distributor may be "AV Power" or a similarly branded
energy solutions company.

3. Front Panel and Controls:

1. LCD Display: Used for showing system status, input/output voltage, battery level, etc.

2. LED Indicators: On the left side of the screen for key status alerts (battery, load,
power status).

3. Buttons:

• ON
• OFF
• TEST/MUTE – likely for performing diagnostics and muting alarms.4. Arrow buttons for navigation in the menu.

4. Cooling Vents:
The vertical grille below the control panel allows airflow for internal component cooling,
essential in online UPS systems which generate more heat due to constant power
conversion.

• Servers and Network Equipment
• Medical Devices
• Office Computers
• Security Systems
• ATM Machines

Approximate Specs for a 1 KVA Online UPS (Typical, may vary by model):

• Capacity: 1000 VA / 800 W
• Input Voltage: 110-300V (wide range)
• Output Voltage: Pure sine wave, 220/230V
• Backup Time: Depends on connected load and battery type
• Battery Type: Usually external 12V batteries or internal battery pack
• Communication: USB/RS232/SNMP (not visible, but often included)

Let me know if you'd like a specific datasheet or help identifying the exact brand/model based on the
logo.
