TTITM (5 to 40 kVA) V1

TTITM (5 to 40 kVA) V1

FEATURES AND PERFORMANCES

Rack-Design
• Modular design, compatible with a 19″ standard rack cabinet, convenientto integrate with servers
High power density
• 5/6/10/15KVA & 20 kVA power module in Saving a great amount of space,easy for capacity expansion
Friendly interface
• 7″ touch color LCD with graphic display, more information displayed forcustomer easier for customer to operate
Integrated solution for data center
 • UPS can integrate with battery cabinet and PDU, offering an excellentchoice for data center
Battery Optimization Group
• Battery optimization can be configured 32-40 from 10 KVA Module
Intelligent charging management
 • The system intelligently controls the whole process of charging and discharging，effectively improving shelf life time of the battery

Reliable, Competitive and Best TCO
• Minimize your power losses and cooling requirements with up to1 power factor • Industry-leading footprint which saves the real estate cost • AC-AC efficiency > 92 % without IT results in marked energy cost savings • Ultrahigh efficiency up to 98% in ECO Mode
• Flexy DC Configurable 144 VDC/+/- 192 VDC – +/- 240 VDC The Best Optimization
• Flexible configuration The system can be configured to 1/1 and 3/1 without derating or hardware changing
• Smart sleep function – System can intelligently shutdown some power modules to increase total load rate,achieving higher efficiency

Enquiry Now
Category:

specification

Application

All kinds of small and medium data center, network servers, control system, precision instruments and intelligent equipments.

•Financial institution
Financial institution
•Education, office and PC
Education

•Military and government
Military and government

•Communications
Communications

•Medical
Medical

•Power supply and manufacture
Power supply

Friendly Interface

Provide graphical and text based information of alarms, status data, instructions that users can have more friendly and safer operation.

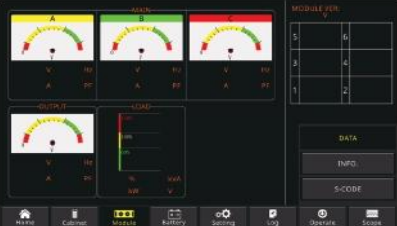

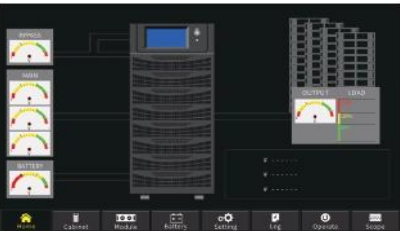

Interface 1
Interface 2

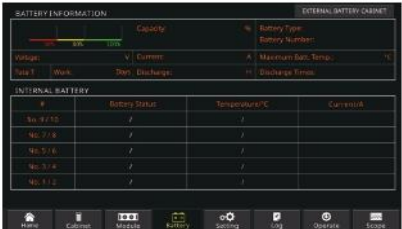

Interface 3
MODEL TTITM9005 TTITM9010 TTITM9018 TTITM9020++
INFINITE - TTITM
General Specifications
UPS architecture (Cabinet) 5kVA ~20kVA 5kVA ~20kVA 6kVA ~24kVA 10 kVA-30kVA
Apparent power (kVA) 5 5 6 10
Active power (kW) 5 5 5.4 10
Max Power Module 5 (5kW+
Redundancy )		 5*2 (10kW+
Redundancy )		 5.4*3 (16.2 kW+
Redundancy )		 10*2(20kW+Redundancy)
Frame Size 20 kVA 20 kVA 24 kVA 30 kVA
Technology Advanced Dual-Core DSP Control Technology and 3-level technology VFI-SS-111
Waveform Sinusoidal
UPS architecture Modular and redundant UPS system
INPUT
Dual Input Standard
Input wiring Single Phase Three -Wire ( 1Φ + N + PE ) | Three-phase five-wire (3Φ+N+PE)
Input voltage 160 ~ 270 Vac 220/230/240 1PH (Without Derate) | 380 / 400 / 415 Vac 3Ph+N|
Input frequency 40 ~ 70 Hz
Input Rated frequency 50 / 60 Hz (auto-sensing)
Input voltage range 304 ~ 467 Vac (no downgrading) / 160 ~ 270 Vac (linear downgrading between40%~100% load)
Bypass voltage range (-)25% ~ +25% (settable)
THD Input Current 7% ( 100% rated load)
Input power factor ± 0.95 (with rated load)
OUTPUT
Output wiring Three-phase five-wire (3Φ + N + PE)
Output voltage 220, 230, 240 1F
Output Voltage Regulation ±1% ( with balance load ) 1.5 % ( unbalanced load)
Output frequency Synchronized with utility in mains mode, 50 / 60 Hz ± 0.1%in battery mode
Efficiency >>92 % in online mode, 98% in ECO mode & upto 90%at Battery Mode
Power Factor 1 0.9 1
Waveform Sinusoidal
Crest Factor 3:1 Max
Total Harmonic Distortion (THDv) ≤ 3% (linear load); ≤ 5% (non-linear load)
Overload capacity 105% ~ 110% for 1 min, turn to bypass mode
Bypass Automatic and Maintenance Bypass
Transfer Time 0 ms
BATTERIES
DC voltage 144 VDC(12 pcs)
Autonomy expansion Additional Battery Cabinets
Battery series type/voltage VRLA - AGM Lead-acid, Sealed Maintenance-free
Number of Battery 12 pcs ( Can be Parallel upto 4 Strings)
Charging current (max.) Upto 20% ^ Output Active power
Battery Test Automatic or Manual
Recharge Time Depend on the capacity of battery
Battery Cold Start Optional
System Protection Short-circuit, overload, over temperature, excessive low battery, over voltage, undervoltage, fans failure
Back feed Protection Yes Inbuilt
Self Safe Load Capacity Test
( Self-agingmode)		 Yes Inbuilt ( Without adding External Load )
SYSTEM COMMUNICATION AND MANAGEMENT
Display 7 inches LCD colorful touch screen, friendly human & machine interface
Communication ports Standard configuration: RS232, USB, RS485, RJ45, Dry contacts,PDU(Optional
configuration EPO ,SNMP,AS400 card )
Alarms and signals Configurable acoustic alarms and signals Utility abnormal,UPS abnormal, BatteryLow, Overload, System Fault etc
Remote management Yes
CONFORMITY
EMI EN62040-2
IEC/EN 62040-1 -1 IEC/EN 62040-2 (EMC Emission)
EMS IEC/EN 50091-1 IEC/EN 62040-3 ( Performance & Design) IEC/EN60950 ( Safety) IEC/EN61000-4 ( EMC Emmunity)
IEC/EN 50091-2 IEC/EN 60146 ( Design & Manufacture)
MECHNICAL FEATURES
Dimensions (W x D x H ) (mm) 600x 840x 1400 mm
443 x 580 x 131 486 x 697 x 575
Net weight (kg) +/- 5% PM : 7.5 kg PM : 7.5 kg PM : 7.5 kg PM : 7.5 kg
Cabinet : 66.5 kg Cabinet : 66.5 kg Cabinet : 66.5 kg Cabinet : 66.5 kg
AMBIENT CONDITIONS
Operating Temperature (° C) 0℃ ~ 40℃
Storage Temperature (°C) (-)40℃ ~ 70℃ (without battery)
Relative Humidity (%) 0% ~ 95% (non-condensing)
Altitude ≤ 1500 m; above 1000 m, downgrading 1% for each additional 1000m~2000m
Protection rating IP20
(dBA ) 55dB @ 100% load, 52dB @ 50% load

Description

SWITCHING AVO ELECTRO POWER LIMITED

Switching AVO, India’s leading power solutions provider is a truly technology and innovation-driven Indian company. With a journey that began with a humble beginning in 1989 from Kolkata, Pan India presence since 2005 , AVO is a leading manufacturer and solution provider of intelligent power backup and Solar products engineered to be energy efÞcient and environment-friendly.

AVO is reaching millions of people around the world with innovative and affordable power solutions for a sustainable future.

We at AVO manufacture a wide range of power solution products- Online UPS (1KVA -1.5 MW) , Inverter, Servo Voltage Stabilizer, lithium ion battery, Smart Solutions and Solar Inverter conforming to International standards such as UL/CE and RoHS compliance. In the solar rooftop sector, we have installed over 50 MW of solar power plants.

Our presence is across all sectors, from BFSI, Government , Corporates, Healthcare, Hotels, Education, Railways, Education, Telecommunication, IT/ITES, Defence, Smart Infra, Oil and Gas Industry.

AVO INFINITE -TTITM Series Modular UPS systems is Latest 3rd Gen Advanced DSP and 3-level technology truedouble conversion online UPS systems designed capacity Range 5- 90kVA.

TTITM offers Optimum Scalability of 5 KVA,6 KVA,10kVA, 15KVA & 20 KVA , addition to that, its offers Centralized Bypass, Isolated air flow

TTITM offers flexible configuration of 1/1,3/1 with its flexible configuration upto 60 kWand Addition to that Its also offer Single Phase input and 3phase output TTITM Modular is No.1 modular technology, Online double conversion,N+X redundant, Hot-Swappable ,with latest IGBT 3rd Gen 3-level and full DSP control technology . TTITM is designed to protect any critical high-density computer and IT environment, whilst achieving maximum availability.To optimizing both the initial investment and the Total Cost of Ownership.

TTITM offers Multi protection features a wide operating temperature window and strong overload protection, all in a lightweight footprint , addition to that it offers default conformal coating technology that makes UPS operate in harsh environment for a long time & offers flexible battery Configuration with 7 LCD graphic display which makes user friendly human & machine interface. Its APFC Ensure > 0.95 input PF and iTHD < 5-7 %for maximum up stream source compatibility.TTITM Series offers with and without inbuilt isolation transformer upto 60 kW which reduces the floor space thus saving significant infrastructure cost & Low total cost of ownership is achieved by upto94%.and Ultra efficiency of 98 % in ECO Mode.
