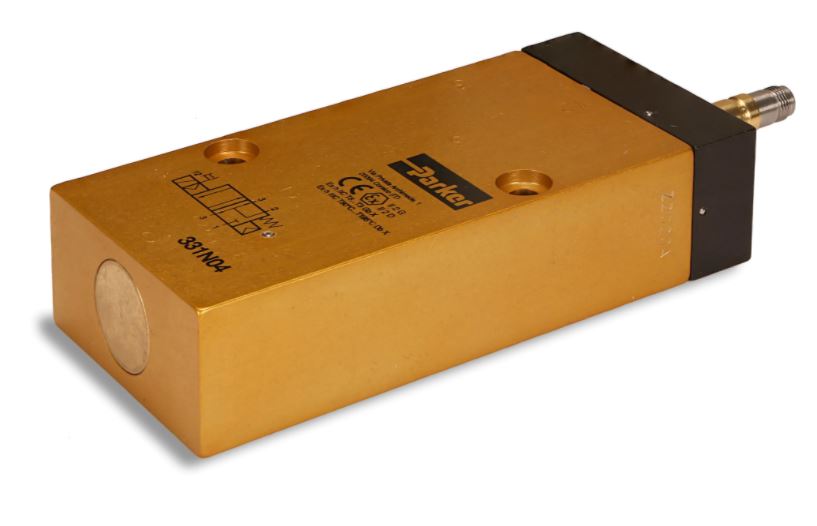

3/2″ monostable distributor, G1/2″, NAMUR series, without coils

Technical specifications

Brand: Parker

• Maximum fluid temperature: 50 °C
• Orifice size: 1/2″ G
• Flow coefficient 1:3000 l/min
• Function: Spring & air return
• Valve type: 3/2 Way
• Control type:Solenoid Operated
• Opening type: Namur
• Body material: Anodized Aluminum
• FluidMedia: Dry or Lubricated Air
• Orifice size: 12.0 mm
• Minimum operating pressure: 2 bar
• Maximum working pressure: 10 bar AC/DC
• Minimum fluid temperature: -20 °C
• Seal material: NBR
• Specifications met: Manual Override
• Markets:
• • Pharmaceutical
  • Food production and storage
  • Water treatment
  • Refineries
  • Powder determination
