Description
Technical specifications
Brand: Parker
- Burst pressure (MPa): 86.0
- DI flexible (dimension): -5
- Brand: Parker
- Maximum operating temperature: 212 (Water: 185, Air: 158) °F, 100 (Water: 85, Air: 70) °C
- Division:Polymer Hose Division Europe
- Sector: Off-road Machinery
- Application: Demanding medium pressure hydraulic applications
- Technology: Fluid & Gas Handling

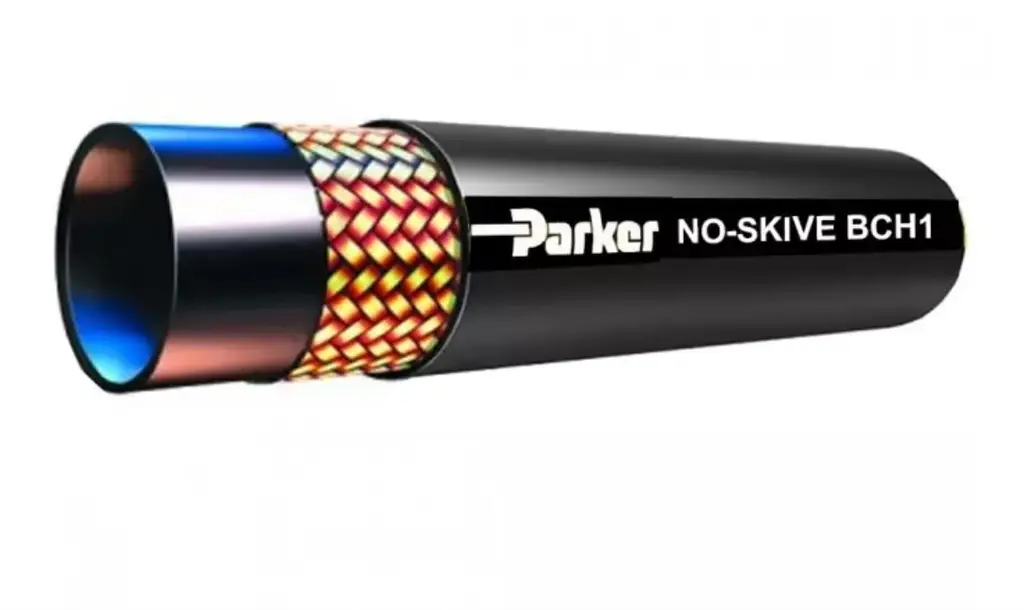

- Product type: Hydraulic hose
- Product Style: No-Skive
- Maximum working pressure: 3110 psi, 21.5 MPa, 215 bar
- Inner diameter of the flexible hose: 7.9 mm, 5/16 inch
- Outer diameter of the flexible hose: 13.6 mm, 0.535 inch
- Minimum radius of curvature: 85 mm, 3.346 inches
- Design factor: 4:1
- Cover color: Black
- Compatible fitting: 46 Series
- Minimum operating temperature: -40°C, -40°F
- Specifications met: EN 857 – 1SC – ISO 11237 Type 1SC
- Materials used: Rubber
- Cover material: Synthetic rubber
- Inner tube material of the hose: Nitrile NBR
- Hose reinforcement material: One high-tensile steel wire braid
- Weight: 0.20 kg/m, 0.13 lb/ft
- Media Fluid: Petroleum and water-glycol based fluids, lubricating oils, air and water, Hydraulic fluids
