Brand: Parker
Product details

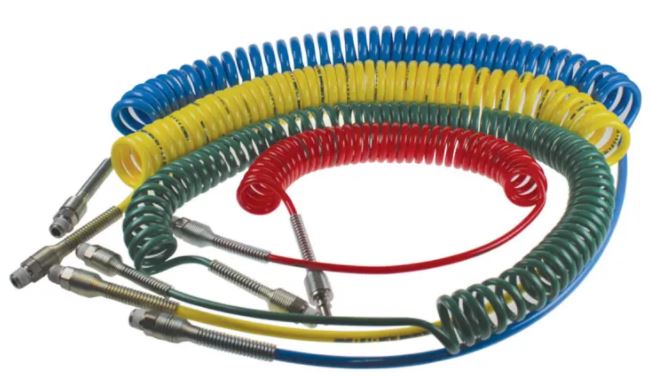

Spiral polyurethane (PU) tubes
This spiral polyurethane tube is ideal for installations requiring high flexibility in confined spaces.
Its good impact and abrasion resistance, along with its straight end design, ensure safe and easy operation of pneumatic equipment.
Features and benefits
• Excellent spiral memory
• Abrasion resistance
• Ideal for high-speed cycle applications
• Consistent tensile strength
• Optimal durability
• Low pressure drop
• Lightweight with protective plastic spring
• Silicone-free
Product application information
• Transportation
• Miscellaneous manufacturing
• Automotive assembly plants
• Machine tools
• Metal refining and primary processing
Parker Legris’ spiral polyamide tubing can be used for compressed air and lubricant conveying. Ideal for use in maintenance workshops, with power hand tools, and in industrial cleaning.
Standards
• NF E49-101
• DI: 2002/95/EC (RoHS), 2011/65/EC
• DI: 97/23/EC (PED)
• RG: 1907/2006 (REACH)
Parker Legris
Technical specifications
| Attribute | Value |
| Manufacturer Series | 1471U |
| Color | Blue |
| Maximum operating length | 4m |
| inner diameter of the tube | 4mm |
| outer diameter of the tube | 6mm |
| Material | PURE |
| Connector | R 1/4 |
| Maximum operating pressure | 10 bar |
| Minimum operating temperature | -20°C |
| Maximum operating temperature | +70°C |
| Number of tubes | 1 |
