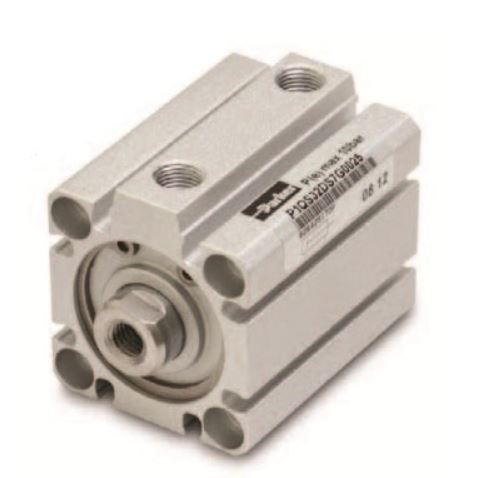

Compact double-acting pneumatic cylinder, 50 mm diameter, 40 mm stroke

Technical specifications
Brand: Parker

Operating temperature range (°C) -5 to +60
Maximum operating pressure (bar) 10
Pressure range (bar) 0.5 to 10
Body material Aluminum
Rod material Threaded stainless steel
Product advantages Compact and economical design for numerous applications
Quiet operation thanks to integrated damping pads at the end of the stroke.
Rod diameter (mm) 20
Connection G1/4″
Stroke 40 (mm)
Function Double acting
Type P1Q to Ø 50 non-magnetic
Type Compact
Piston diameter (mm) 50
Damping type None
Bore (mm) 50
