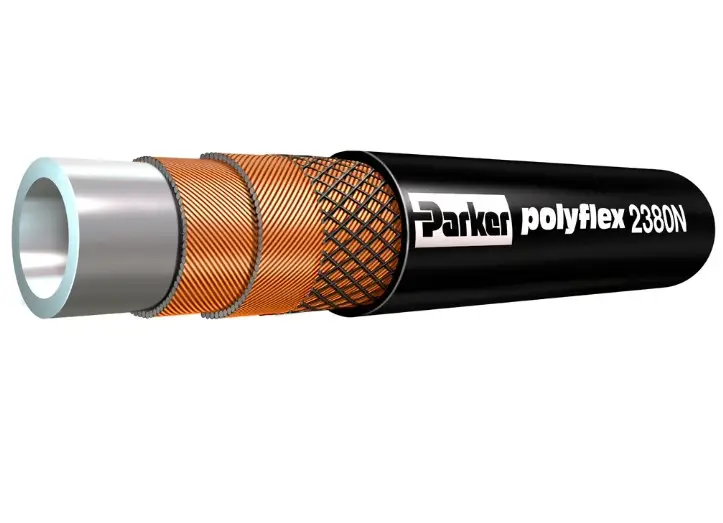

Flexible Thermoplastic Hose – Ultra High Pressure – DN6 – 700 Bar / 10150 Psi

Technical specifications

Brand: Parker

• Weight (kg/m): 0.27
• Color: Black
• Maximum working pressure (MPa): 70
• Brand: Parker
• Division:Polymer Hose Division Europe
• Sector: General Industrial, Marine
• Application: Hydraulics
• Technology: Fluid & Gas Handling
• Product Type:Hydraulic Hose, Transfer Hose, Water Blast Hose
• Product Style: High Pressure Hose
• Maximum working pressure: 10150 psi, 70 MPa, 700 bar
• Inner diameter of the flexible hose: 1/4 inch, 6.4 mm
• Outer diameter of the flexible hose: 13.4 mm, 0.528 inch
• Minimum radius of curvature: 70 mm, 2.756 inch
• Design factor: 4:1
• Cover color: Black
• FluideMédia: Hydraulic Fluids
• Compatible connector: 8X Series
• Maximum operating temperature: 212°F, 100°C
• Minimum operating temperature: -40°F
• Specifications met: n/a
• Materials used: Thermoplastic
• Cover material: Polyurethane
• Inner tube material of the flexible hose: Polyamide
• Hose reinforcement material:Two spiral layers and two open spiral layers of high tensile steel wire
• Weight: 0.27 kg/m, 0.18 lb/ft
