Description
Technical specifications
Brand: Parker
- DI flexible (dimension): -6
- Brand: Parker
- Maximum operating temperature: 212 (Water: 185, Air: 158) °F, 100 (Water: 85, Air: 70) °C
- Division:Polymer Hose Division Europe
- Sector: Off-road Machinery
- Application: Demanding medium pressure hydraulic applications
- Technology: Fluid & Gas Handling

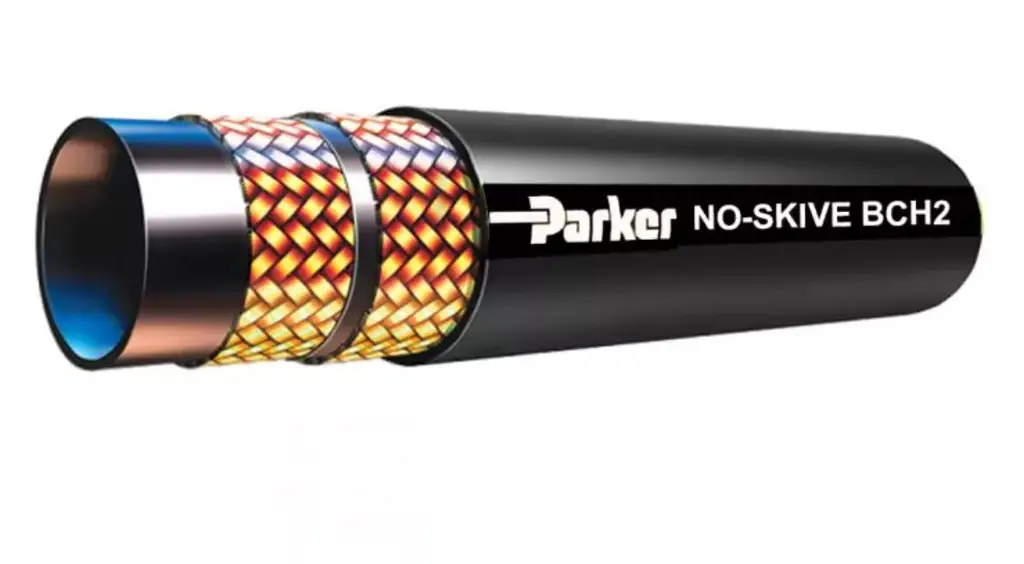

- Product type: Hydraulic hose
- Product Style: No-Skive
- Maximum working pressure: 4800 psi, 33.0 MPa, 330 bar
- Inner diameter of the flexible hose: 3/8 inch, 9.5 mm
- Outer diameter of the flexible hose: 17.2 mm, 0.677 inch
- Minimum radius of curvature: 90 mm, 3.543 inches
- Design factor: 4:1
- Cover color: Black
- Compatible fitting: 48 Series
- Minimum operating temperature: -40°C, -40°F
- Specifications met: EN 857 – 2SC – ISO 11237
- Materials used: Rubber
- Cover material: Synthetic rubber
- Inner tube material of the hose: Nitrile NBR
- Hose reinforcement material: Two high-tensile steel wire braids
- Weight: 0.39 kg/m, 0.26 lb/ft
- Media Fluid: Petroleum and water-glycol based fluids, lubricating oils, air and water, Hydraulic fluids
