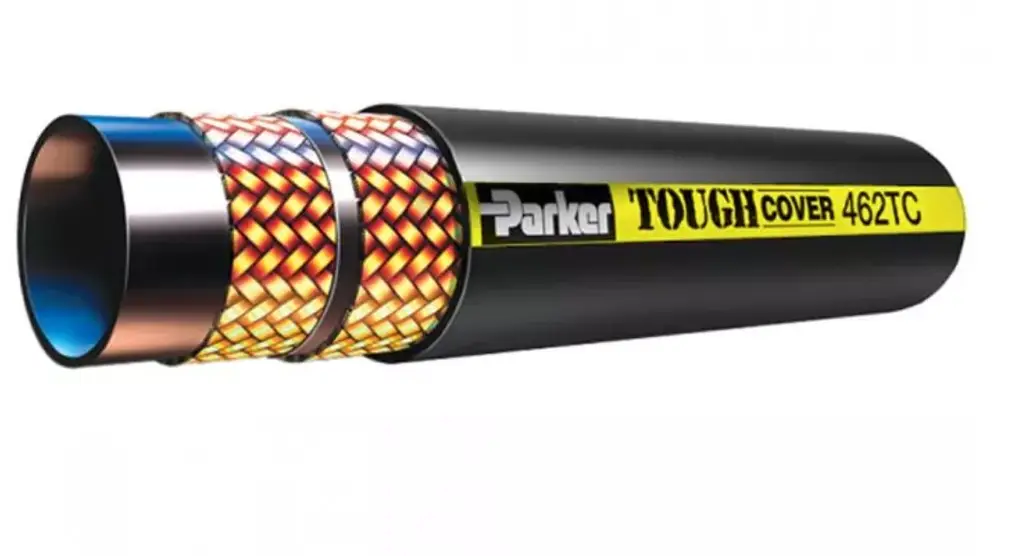

Hydraulic Hose – EN857 2Sc – DN51 112 Bar / 1624 Psi – Tough Cover – MSHA

Technical specifications

Brand: Parker

• Hose sheath type: Robe Tough Cover
• DI flexible (dimension): -32
• Brand: Parker
• Division:Polymer Hose Division Europe
• Sector: General Industrial, Off-road Machinery
• Application: Demanding medium pressure hydraulic applications in all markets
• Technology: Fluid & Gas Handling
• Product type: Hydraulic hose, Specialty hose
• Product Style:Elite No-Skive Compact Tough Cover
• Maximum working pressure: 1624 psi, 11.2 MPa, 112 bar
• Inner diameter of the flexible hose: 50.8 mm, 2 inches
• Hose outer diameter: 64.0 mm, 2.520 inches
• Minimum radius of curvature: 500 mm, 19.685 inches
• Design factor: 4:1
• Cover color: Black
• Compatible fitting: 48 Series
• Maximum operating temperature: 100°C (Water: 85°C, Air: 70°C), 212°F (Water: 185°C, Air: 158°C)
• Minimum operating temperature: -40 °C
• Specifications met: EN 857 2SC – ISO 11237 Type 2SC
• Materials used: Rubber
• Cover material: Highly abrasion resistant, MSHA approved
• Inner tube material of the hose: Nitrile NBR
• Hose reinforcement material: Two high-tensile steel wire braids
• Weight: 2.90 kg/m, 1.95 lb/ft
• FluideMédia: Petroleum and water-glycol based fluids, lubricating oils
