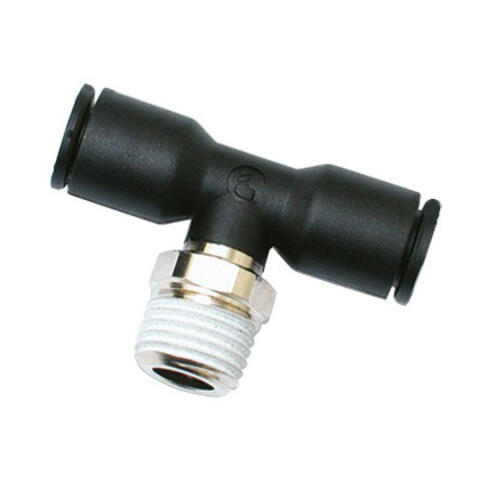

Instant pneumatic tee fitting, for 6 mm x 1/4″ BSPT-M tubing

Technical specifications

6 mm tee fitting – 1/4″ BSPT male

Brand: Parker Legris

Legris quick-connect fitting in high-resistance polymer, LF3000 series, male tee in the center allowing the connection of 2 tubes at 90° from a threaded location:

Quick connection: 6 mm
Thread 1/4” BSPT (tapered)
Maximum working pressure: 20 bar
Operating temperature: -20°C to +80°C
Body in technical polymer
Base in nickel-plated brass
Seals in nitrile rubber (NBR)
Stainless steel locking washer
This robustly designed fitting has been individually tested and dated, guaranteeing perfect quality and reliability.
