Technical specifications

Brand: Parker

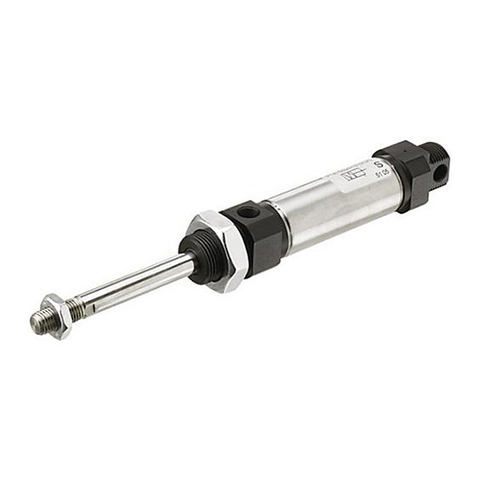

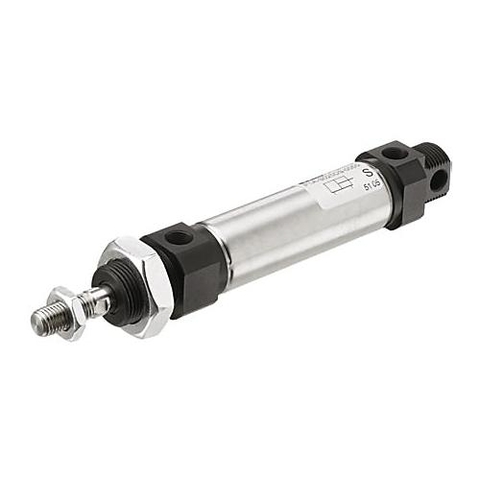

Mini cylinder Ø16 mm, M6 rod, M5 ports, 25 mm stroke, P1A series

Mini double-acting, elastic-damped cylinder with magnetic piston, threaded rod, and nut, ISO 6432 compliant P1A series.

Technical specifications:

Cylinder type: double-acting with magnetic piston;
Piston diameter: 16 mm
; Rod: M6
; Ports: M5
; Stroke: 25 mm
; Elastic damping;
Maximum operating pressure: 10 bar;
Operating temperature: -20°C to +80°C;
Compliance: ISO 6432;
Corrosion resistant

. This cylinder is supplied complete with nose nut and rod nut.

The P1A series cylinders are specifically designed for low-demand applications, such as in the packaging, food, and textile industries.
Their smooth exterior, corrosion-resistant materials, and pre-lubrication with non-toxic white grease make these cylinders particularly suitable for use in the food industry.
The cylinders in this series have a careful design and their overall dimensions conform to the international standards ISO 6432 and CETOP RP52P, which guarantees their complete interchangeability.
