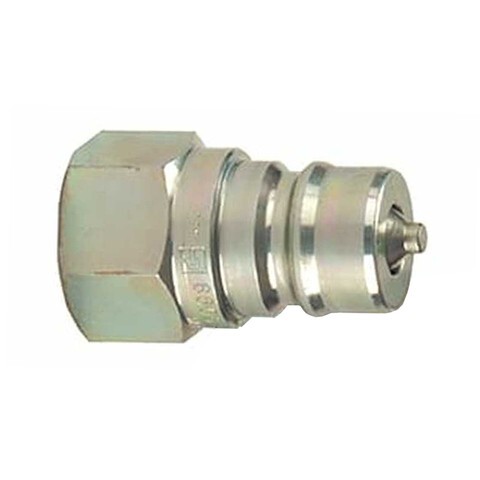

Nipple for Quick Coupling Series 6600 ISO Profile A Standard Ball Lock 1/2″ BSPP Female

Hydraulic quick coupler male profile ISO A series 6600:

 Male end
 Size 1/2”
 Thread: 1/2” BSPP
 ball lock
 Nitrile (NBR)
 seal PTFE counter seal
 Working pressure: 280 bar
 Standard ISO 7241-1-A
 Temperature range: -40° +110°C
 Steel construction

The hydraulic quick couplers of the 6600 series are interchangeable with quick couplers from other manufacturers conforming to the ISO 7241 series A standard.
