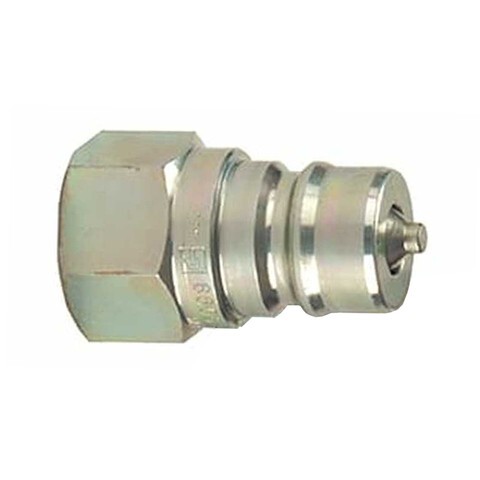

Nipple for Quick Coupling Series 6600 ISO Profile A Standard Ball Lock 1/4″ BSPP Female

Technical specifications

Brand: Parker

Hydraulic quick coupler male profile ISO A series 6600:

Male end
Size 1/4”
Thread: 1/4” BSPP
ball lock
Nitrile (NBR)
seal PTFE counter seal
Working pressure: 350 bar
Standard ISO 7241-1-A
Temperature range: -40° +110°C
Steel construction

The hydraulic quick couplers of the 6600 series are interchangeable with quick couplers from other manufacturers conforming to the ISO 7241 series A standard.
