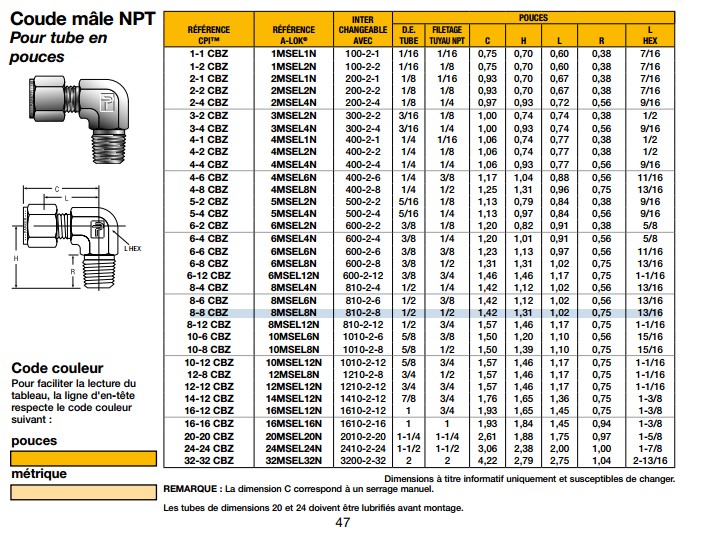

Parker 1/2″ NPT-M x 1/2″ OD male elbow, 316 stainless steel

Technical specifications

Brand: Parker

Parker A-lok Male Elbow, 316SS, 1/2″ x 1/2″ MNPT Double Ferrule Tube Fitting

Body Material: 316 Stainless Steel;
Compression Thread Size: 3/4-20;
Connection Size: 1/2″;
Connection Type: Two Ferrules;
Hex Size: 13/16″;
Max. Temporary Operation: 605°C
; Max. Pressure: 5800 psi;
Min. Temporary Operation: -255°C;
Hose Size: 1/2″
; Male Elbow
Style: NPT; Tube to Male Hose;
Temp. Range: -425°F to 1200°F;
Outer Tube Diameter: 1/2″;
Tube Size: 1/2″
