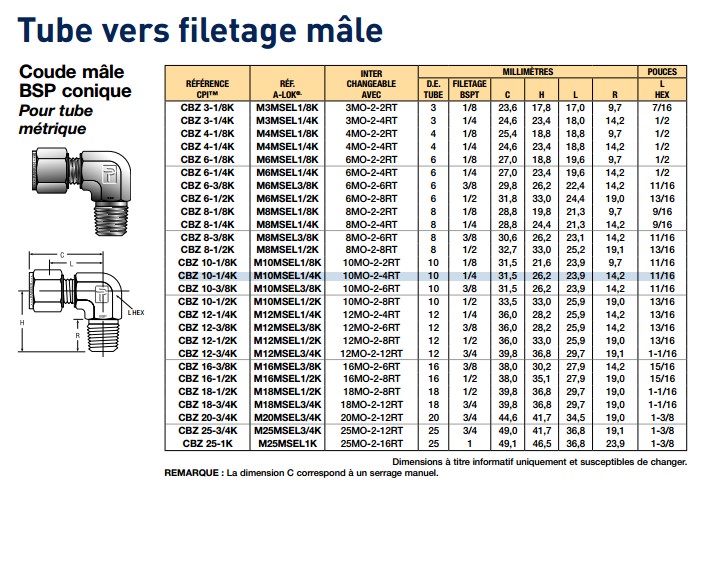

Parker 1/4″ BSPt-M x 10mm OD male elbow for tube, 316 stainless steel

Technical specifications

Brand: Parker

Parker Instrumentation MSEL series elbow fitting, 10 MM x 1/4″, tube x BSPT MPT, 7500 PSI, 316 tight grain forged stainless steel, double ferrule, reducer, elbow.

Application: Offshore Control Panel, Detection Line, Steam Service Line.
End Connection: Tube X BSPT Male Threaded.
Material Specification: ASME SA182 316/BS970 316-S31/DIN 4401.
Pressure Rating: 7,500 Psi.
Process: Tight Grain Forging.
Body Material: 316 Stainless Steel
. Tube Size: 10 mm.
End Size 2: 1/4″.
Product Category: Fittings.
Product Type: Elbows
