Description
Technical specifications

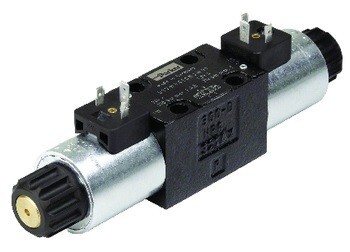

Brand: Parker
- Seal material: NBR
- Coil position: 2 positions, spring offset in position b, operated in position a
- Input voltage: 24 VDC
- Solenoid valve option: Standard
- Coil code: 020
- Opening size: n/a
- Operating type: Direct
- Maximum flow rate: 70 L/min
- Connection type: Connector conforming to standard EN 175301-803
- Mounting type: Base mounting
- Control type: Solenoid
- Product Series: Dispensers
- Weight: 1.5 kg
- Maximum working pressure: 350 bar
- Maximum operating temperature: 60°C
- Minimum operating temperature: -25 °C
- Seal material: NBR
- For the type of fluid: Hydraulic oil according to DIN 51524
- Function: 3-Way
- Port connection: NG06 / CETOP 03
- Mounting position: Unrestricted, preferably horizontal
