Description
Technical specifications

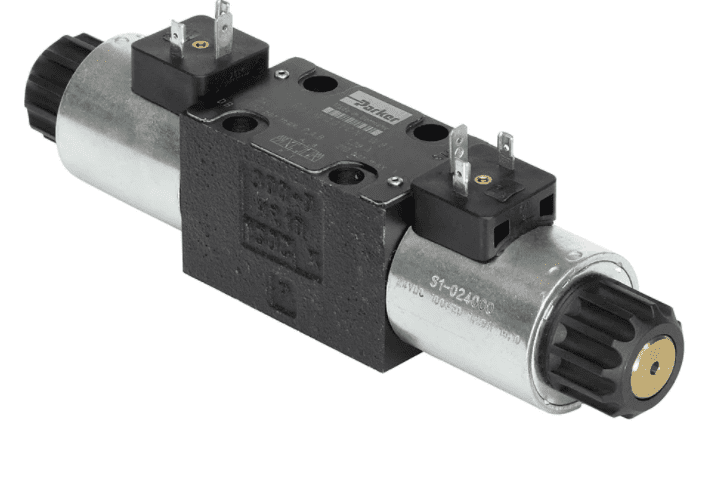

Brand: Parker
- Seal material: NBR
- Coil position: 3 positions, spring offset in position 0, operated in position a or b
- Input voltage: 24 VDC
- Solenoid valve option: Standard
- Coil code: 009
- Opening size: n/a
- Operating type: Direct
- Maximum flow rate: 50 L/min
- Connection type: Connector conforming to standard EN 175301-803
- Mounting type: Base mounting
- Control type: Solenoid
- Product Series: Dispensers
- Weight: 2.1 kg
- Maximum working pressure: 350 bar
- Maximum operating temperature: 60°C
- Minimum operating temperature: -20 °C
- Gasket material: FPM
- For the type of fluid: Water glycol
- Function: 2-Way
- Port connection: NG06 / CETOP 03
- Mounting position: Unrestricted, preferably horizontal
