Description
Technical specifications

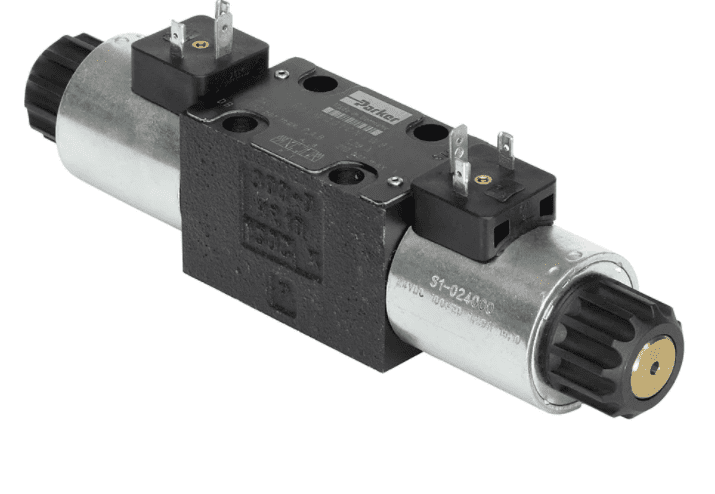

Brand: Parker
- Coil code: 004
- Coil position: 3 positions, spring offset in position 0, operated in position a or b
- Solenoid valve option: With manual override
- Seal material: NBR
- Input voltage: 230/240 VAC, 50/60 Hz
- Opening size: n/a
- Mounting type: Subplate mounting
- Operating type: Direct
- Control type: Solenoid
- Product series: Directional control valve
- Weight: 6.3 kg
- Maximum flow rate: 105 L/min
- Maximum working pressure: 350 bar
- Maximum operating temperature: 60°C
- Minimum operating temperature: -25 °C
- Seal material: NBR
- For the type of fluid: Hydraulic oil according to DIN 51524
- Function: 3-Way
