Parker high pressure hex nipple 10K psi, 1/2″ NPT-M X 1/4″ NPT-M, 316 stainless steel

Technical specifications

Brand: Parker

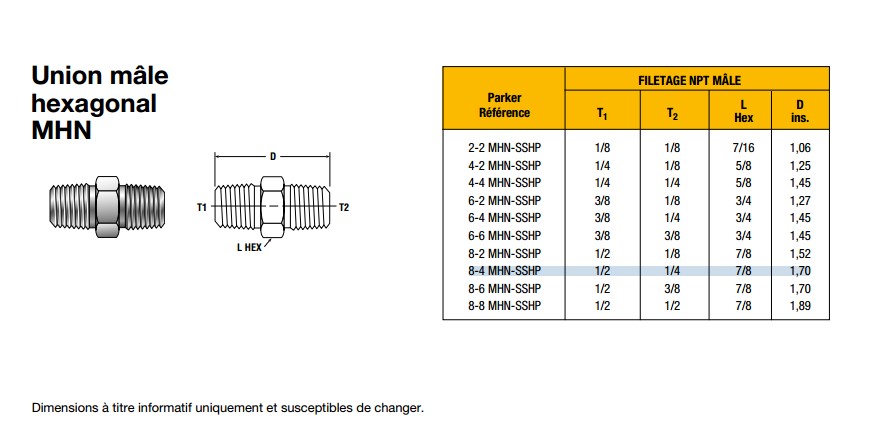

Parker Instrumentation MHN Series High Pressure Nipple, 1/2″ x 1.7″, MPT x MPT, 10,000 PSIG, Cold Finished 316 Stainless Steel Bar, Hexagonal, High Pressure Nipple.

Applicable Standard: ANSI B31.1/B31.3/B1.20.1, ASTM.
Application: Air System, Chemical & Waste System, General Industrial System, Instrumentation, Lubrication System.
End Connection: Male x Male Threaded .
Material: 316 Stainless Steel.
Material Specification: ASTM A276/ASME SA479/BS970 316-S31/DIN 4401.
Overall Length: 1.7 in.
Pressure Rating: 10,000 Psig.
Process: Cold Finished Bars.
Size A: 1/2 in.
Size B: 1/4 in.
