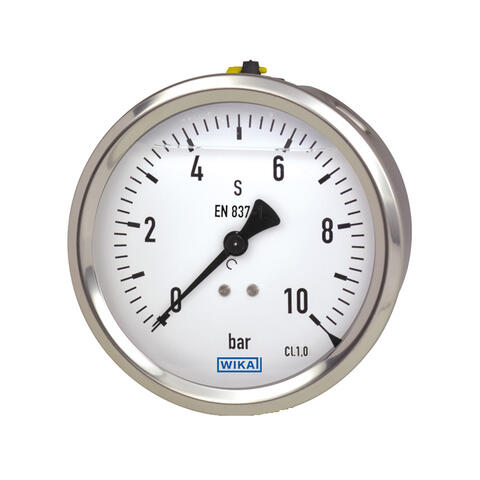

Pressure gauge 0–10 bar, axial rear connection G1/4 BSP, 63 mm dial, glycerin-filled stainless steel case

Technical specifications:

• Type: 213.53 (pressure tube gauge)
• Case: Stainless steel with riveted bezel
• Filling: Glycerin (vibration damping)
• Measuring range: 0 to 10 bar
• Dial diameter: Ø63 mm
• Process connection: G1/4 B
• Connection position: Rear
• Measuring element: Copper alloy
• Accuracy class: 1.6
• Overpressure limit: Standard
• Dial: White with black graduations
• Needle: Black with zero stop
• Sight glass: Clear plastic
• Standard: EN 837-1
• Safety marking: S
• Manufacturer: WIKA
