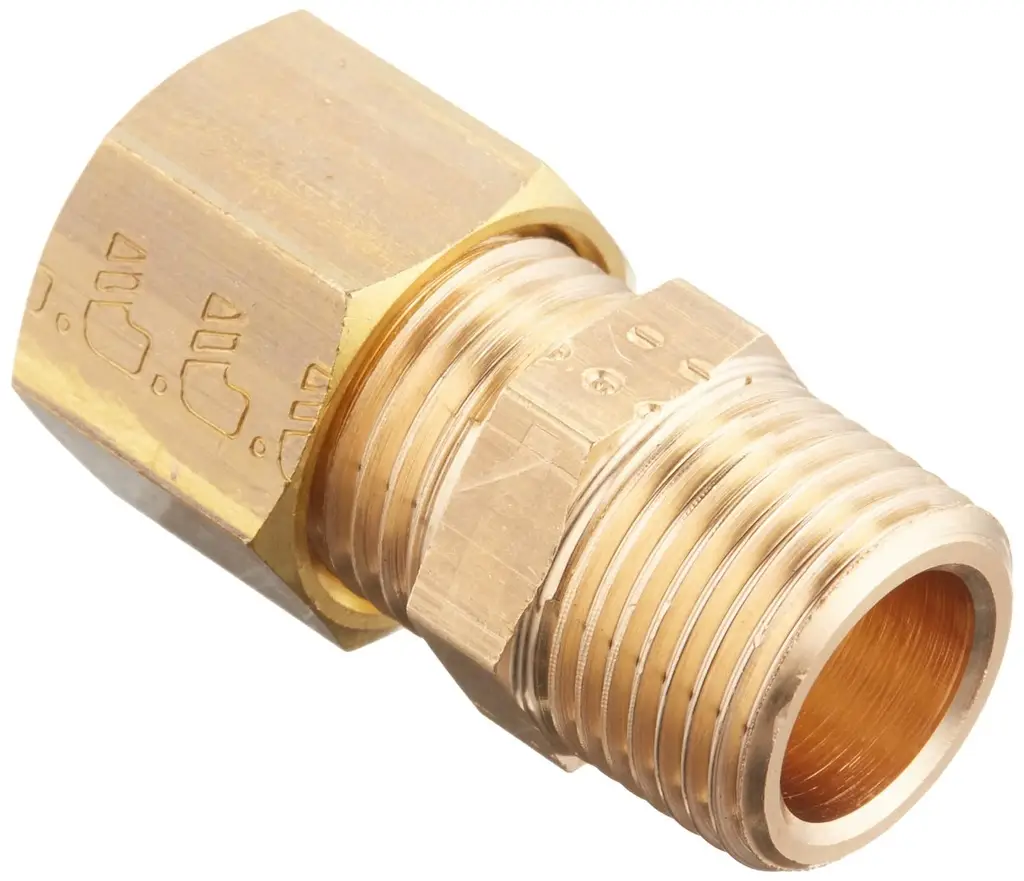

Legris straight brass pneumatic fitting with ring and nut T12 3/8″ BSPT-M

Technical specifications

Brand: Parker

Legris 0105 series brass compression fitting for connecting a tube in line with a threaded connection.

 Tube outside diameter: 12 mm.
 BSPT thread: 3/8″. Gas
 /Fluid: compressed air and non-corrosive industrial fluids.
 Temperature: -60°C to +250°C.
 Operating pressure: vacuum to 550 bar.
 Excellent sealing thanks to the
 crimped fitting on the tube. No gasket to guarantee maximum service life.
 High-strength brass for increased mechanical reliability.

Suitable for a wide range of pneumatic and hydraulic applications (medium pressure), Legris compression fittings are considered “universal,” offering users numerous connection options with a wide variety of tubes, without welding or preparation.
This range guarantees excellent long-term sealing with maximum performance.
