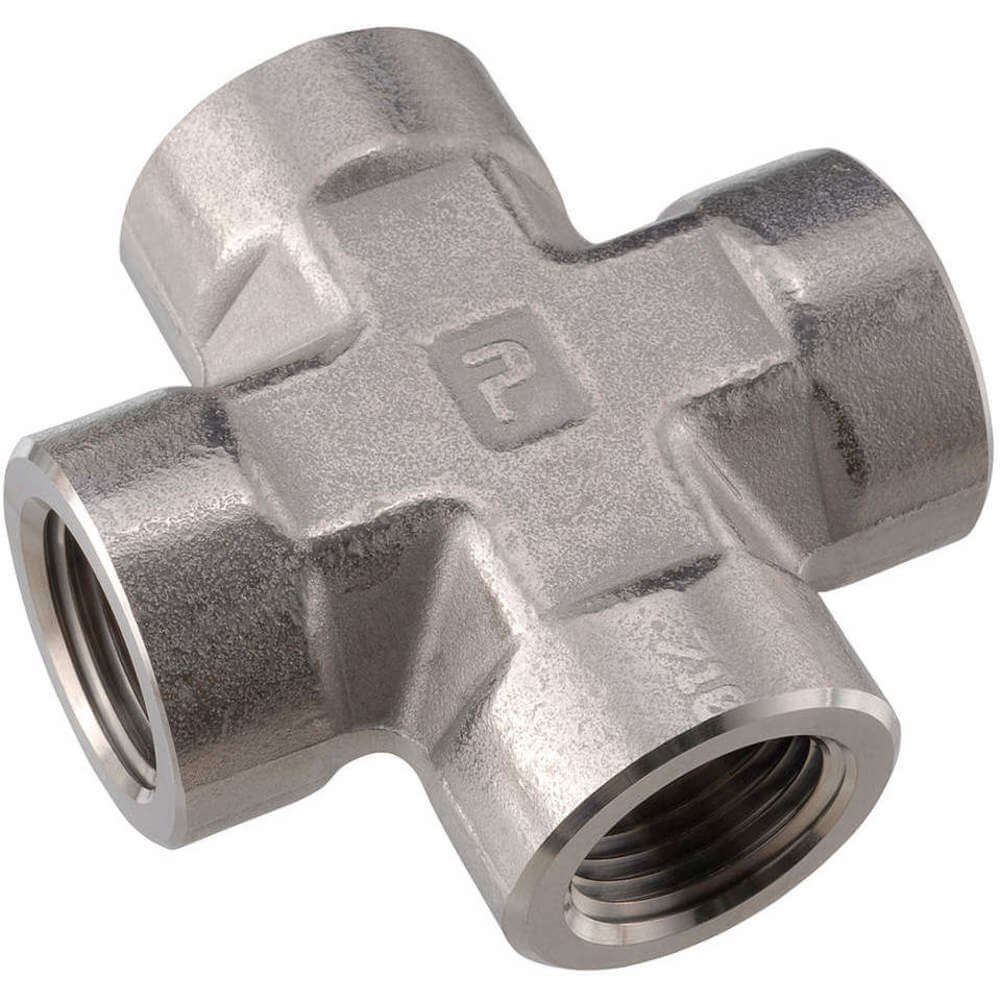

Parker high-pressure female cross fitting, 1/4″ NPT-F, 316 stainless steel

Technical specifications

Brand: Parker

Parker Instrumentation FX Series High Pressure Cross Fitting, 1/4″ x 1/4″ x 1/4″ x 1/4″, FNPT x FNPT x FNPT x FNPT, 10,000 PSI, 316 Stainless Steel, Tight Grain Forged, Straight, Cross.

End Connection: Female Threaded x Female Threaded x Female Threaded x Female Threaded.
Material: 316 Stainless Steel.
Material Specification: ASTM A276/ASME SA479/BS970 316-S31/DIN 4401.
Nominal Size: 1/4″ x 1/4″ x 1/4″ x 1/4″.
Pressure Rated: 10,000 PSI.
Process: Cold Finished Bars
