Brand: Parker.

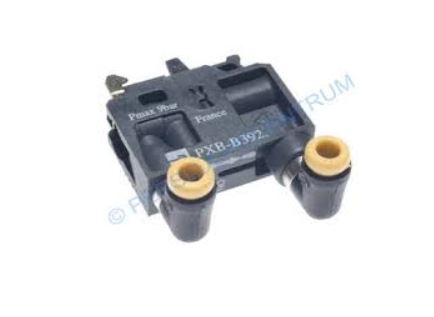

Parker Valve and Electrical Contact Block.
The Parker PXB series 3/2″ port valve features NNP switching. This valve and electrical contact block with mounting ring provide reliable pneumatic systems. The valve has a modular design, and the contact blocks allow for flexible configuration. It is a push-button, spring-return check valve. It is used with ZB4 operating heads. It has
5/32″ instant straight connections.
The maximum operating pressure is 9 bar.
The maximum flow rate is 60 L/min.
The operating temperature range is -15 to 60 °C.
Simultaneous actuation of an electrical contact and a pneumatic valve is possible via the electrical contact block. It
features high-quality, manually operated spool valves and Viton seals.
Suitable for positive pressure or vacuum line applications.
