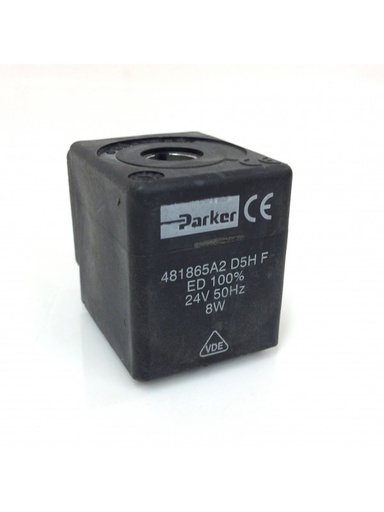

Standard single-frequency coil, 24V AC – 50Hz, 8W for solenoid valves

Technical specifications

Brand: Parker
32 mm coils for FCSE solenoid valves for use in industrial and process applications.
Coil specifications met: CE-VDE-EAC.
Coil temperature range: -40°C to +50°C.
Supply voltage: 24V 50Hz.
Coil power consumption: 8W.
Electrical connection: 2P+E plug according to EN 175301-803 type A.
Insulation class: H 180°C
