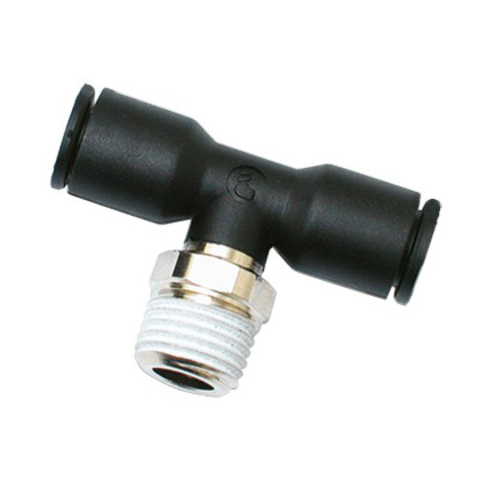

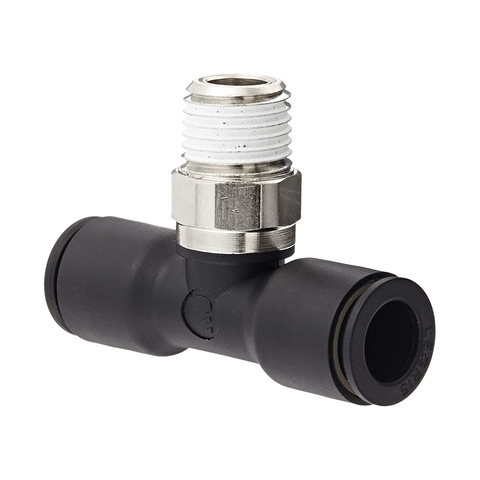

Legris instant pneumatic tee fitting, for 10 mm x 1/2″ BSPT-M tubing

Legris quick-connect fitting in high-resistance polymer, LF3000 series, male tee in the center allowing the connection of 2 tubes at 90° from a threaded location:

 Quick connection: 10 mm
 Thread 1/2” BSPT (tapered)
 Maximum working pressure: 20 bar
 Operating temperature: -20°C to +80°C
 Body in technical polymer
 Base in nickel-plated brass
 Seals in nitrile rubber (NBR)
 Stainless steel locking washer

This robustly designed fitting has been individually tested and dated, guaranteeing perfect quality and reliability.
